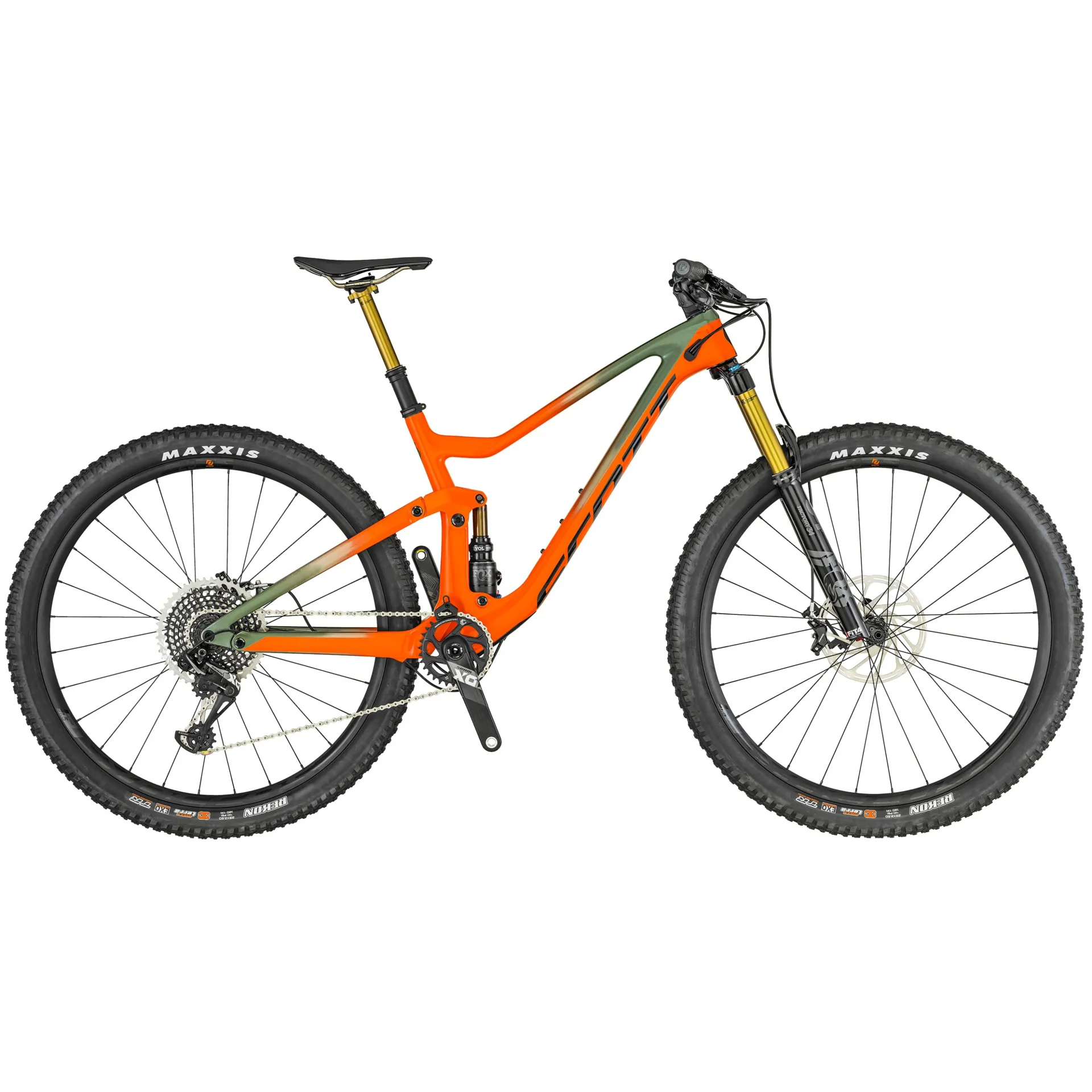

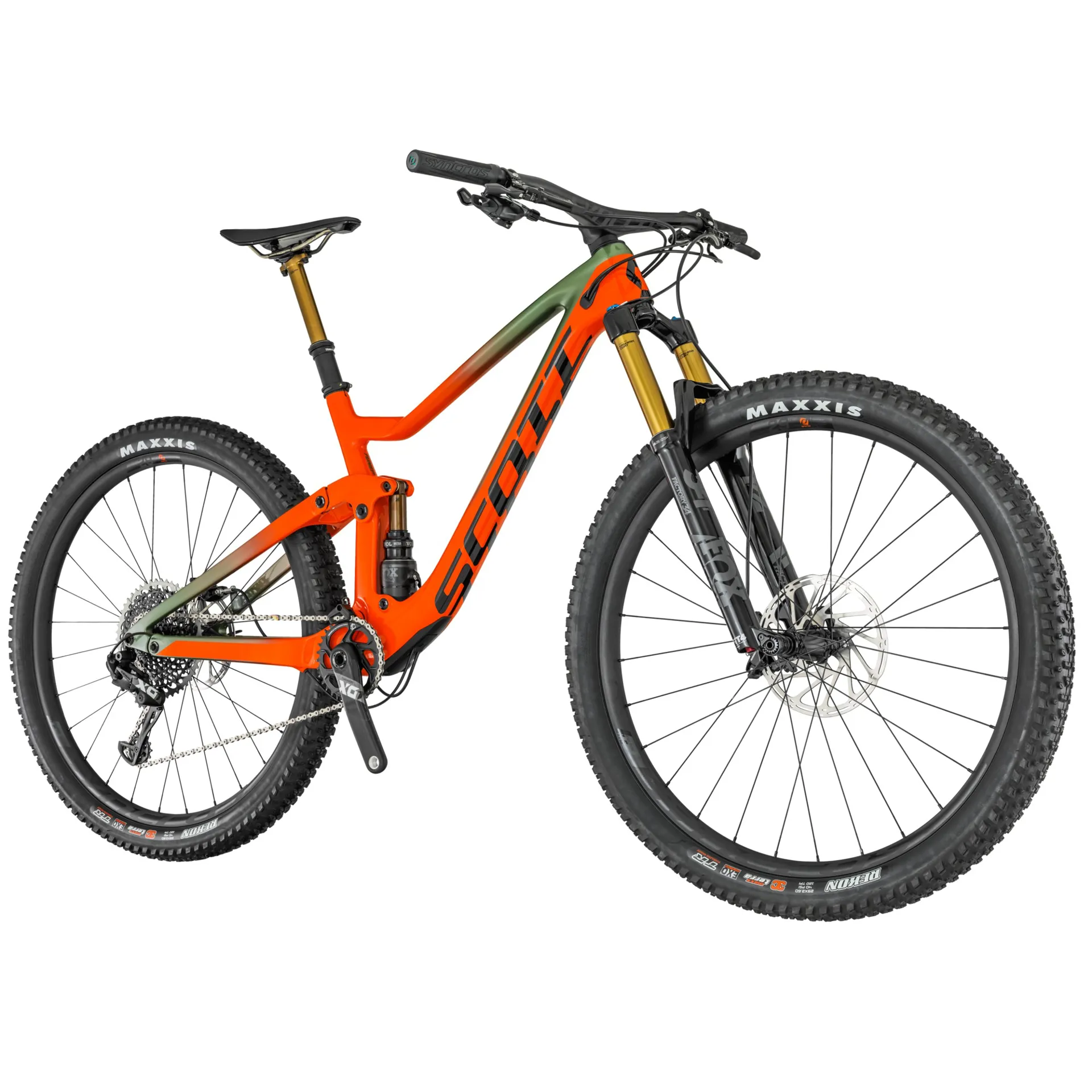

The genius was put on this earth to get you up mountains with ease and to get you back down them in a flash. The genius 900 tuned features Scott's twinloc suspension system to always optimize your ride. With a SRAM eagle drivetrain and syncros components, the tuned is your go to for all day mountain trail huntin'. Any trail. Any time
KEY FEATURES
-
Genius Carbon HMX Frame
-
TwinLoc Suspension System
-
Kashima, FIT4 remote, 3-Modes with low Speed adj., 15x110mm QR axle, Lockout
-
SCOTT custom w. travel & geo adj., 3 modes, Ramp Adjust, Kashima, Travel 150-100-Lockout
-
Syncros Revelstoke 1.5 TR Wheels
-
FOX Dropper Post, Syncros CF Parts
Tech:
Chain Guide
Scotts integrated chain guide was developed in collaboration with the SCOTT SRAM MTB Racing Team.
The idea behind was to create a reliable component that helps to avoid dropping chains but that was light, versatile and integrated in the design of the frame. The new Spark chain guide weighs just 23 grams and is easy to assemble thanks to the smart assembly system and can accommodate chain rings from 30 to 36 teeth.
Genius Trail Geometry
The Genius has always been a bike designed to go up as well as it went down, and vice a versa. For 2019, Scott wanted to re-emphasize this point. They designed the Genius specifically in search of balance. Compared to the previous iteration, this one is slacker, has longer reach, shorter chainstays and a steeper seat angle. Scott really wanted geometry figures that would balance out the long front end for more stable descending. What they ended up with is a bike that climbs like a bat out of hell and gets you down the mountain faster than you can say "dropping!" After years of testing different options, these numbers are a result of taking everything they want out of a bike for the trails we ride, and building it.
Virtual 4Link Design
Scott's suspension kinematic brings perfect balance and control to the platform. Using their Virtual Four Link design, they have honed our suspension feel, pedaling and braking response to work with maximum efficiency and in harmony with the TwinLoc Suspension System. Scott's kinematic suspension curve gives supple small bump sensitivity and therefore exceptional traction characteristics, perfect support in the mid-stroke and a controlled deep stroke for predictable and comfortable bottom outs. Specific pivot placements ensures efficient pedaling that drives the bike forwards like a startled greyhound and neutral braking that strikes a perfect balance between rider comfort and control, chassis stability and rear wheel traction. From the XC racer, to the downhill enthusiast, the kinematic brings improvements and advantages in all areas and gives a solid fundamental basis for a bike for all riders and all conditions.
One Frame Two Wheels Sizes
Scott have set out to achieve ultimate versatility. These specific models can switch from 27.5" to 29" wheels with nothing more than the flip of a chip. No need to change the fork, all you need to do is flip a shock mount chip, change your wheels and off you go. The flip chip allows us to maintain a similar BB height when switching from one wheel size to the other which is key to keeping handling similar for both wheel sizes. With 27.5" wheels, you can run either 2.5", 2.6" or 2.8" tires. For the 29er, anywhere from 2.4"-2.6" is good to go.
SW Dropouts
On the Scale, Spark and Genius Scott redesigned all the parts that can give significant benefits in terms of performance and functionality. On the previous model the support of the dropout was a bulky additional part molded to the carbon chain stay. The new dropouts are designed to be integrated on the thru-axle system thanks to a hollow tubular design that allows a simple and light weight structure. Available for SRAM and Shimano DM derailleurs, this dropout increases the stiffnessand avoids damage to the frame in case of impacts on the rear derailleur.
Trunnion Construction
Scott have adopted the new Metric shock sizing standards with a Trunnion mount. Since the shock body now extends between the two lower mounting bolts, their suspension partners have more design space. This means the shock has more stroke for the same eye to eye length. Stroke on the 165mm eye to eye shock has increased from 38mm to 40/45mm.The Trunnion standard also offers structural gains. The shorter shock enables us to build a very compact frame and shock package, which integrates tightly to the seat tube. Scott managed to have a very tiny yet stiff linkage-lighter than ever. Thanks to the Trunnion mount construction, stand over height on the new Spark is very low. Scott are still able to realize a super compact full suspension frame and provide the ability to mount both a small and big water bottle.
