Frame

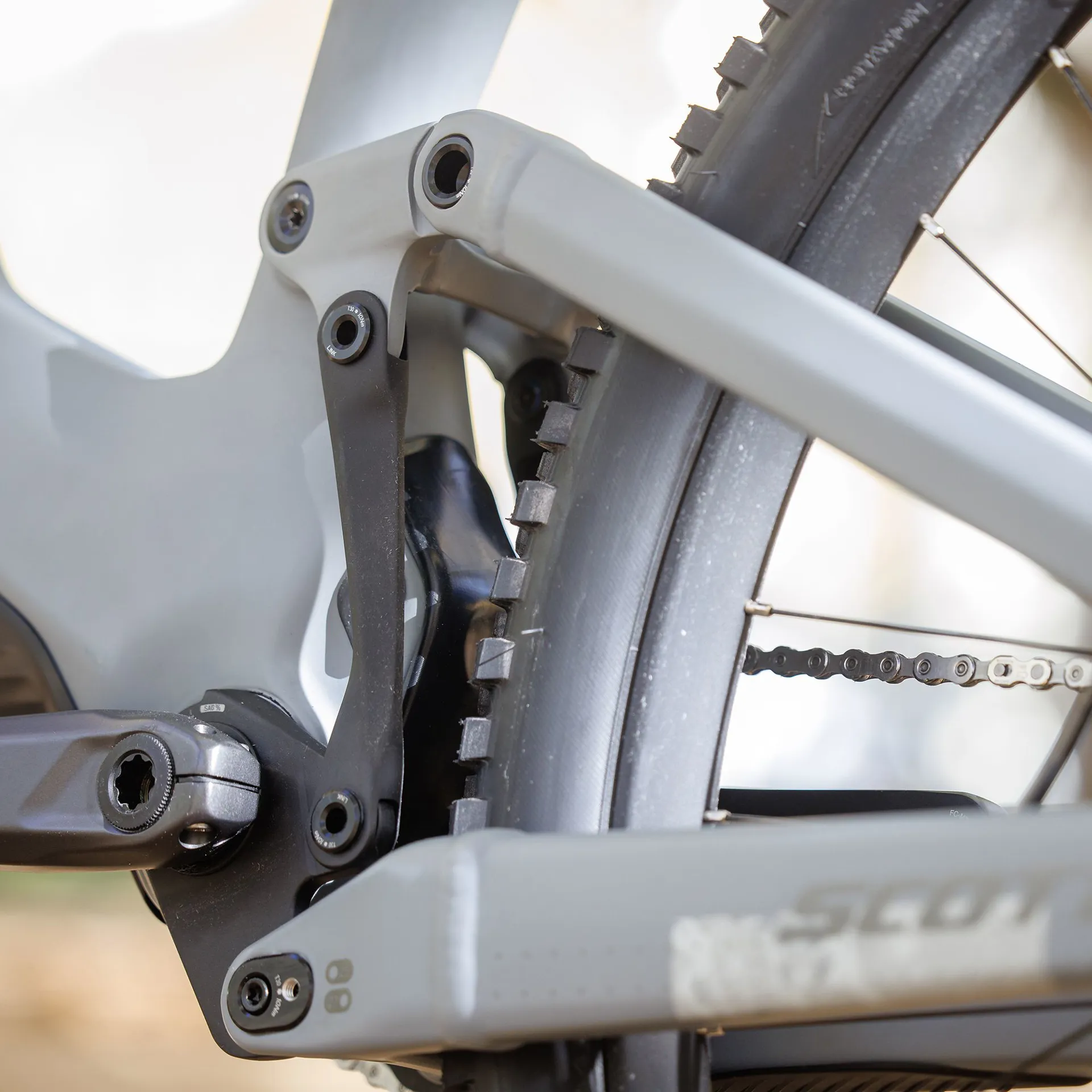

Ransom Carbon HMF Mainframe with Alloy 6061 SwingarmIntegrated Suspension Technology6 Link kinematic / Adjustable head angleSyncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline / MX Ready
Fork
RockShox Domain R Solo Air15x110mm Maxle stealth axle42mm offset / Tapered SteererReb. Adj. / 170mm travel
Rear Shock
FOX FLOAT X NUDE EVOL Piggy Back Trunnion / SCOTT custom w. travel / geo adj.3 modes: Climb-Ramp Control-DescendCustom large Air volume / Comp & Reb. Adj.Travel 170-130-Climb / T205X65mm / Bearing Hardware
Remote System
TracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes
Rear Derailleur
Shimano Deore RD M6100 / 12 Speed
Shifters
Shimano Deore SL-M6100-R / Rapidfire Plus
Crankset
Shimano FC MT51232T / Chainline 55mm
Chainguide
SCOTT custom
BB-Set
Shimano BB-MT500-PA / shell 41x92mm
Chain
Shimano CN M6100
Cassette
Shimano Deore CS-M6100-12 / 10-51 T
Brakes
Shimano MT520 4 Piston Disc
Rotor
Shimano SM-RT64 / centerlock / 203mm
Handlebar
Syncros Hixon 2.0 Alloy 6061 D.B.Size S & M 12mm Rise / Size L & XL 20mm Rise / back sweep 8° / 780mmSyncros Endurance lock-on grips
H'stem
Syncros AM 2.0Syncros Cable Integration System4° rise / 6061 Alloy / 31.8mm / 40mm
Seatpost
Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mmS size 140mm / M size 180mm / L & XL size 210mm
Seat
Syncros Tofino 2.0Crmo Rails
Headset
Syncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Hub (Front)
Formula CL 811 / 15x110mm
Hub (Rear)
Formula CL 148M / Boost 12x148mm / Micro Spline
Spokes
Stainless Black 15G / 1.8mm
Rims
Syncros X-30S / 32H / 30mm / Sleeve JointTubeless ready
Front Tire
Maxxis Assegai / 2.5" / 60TPI FoldableEXO / TR / Dual
Rear Tire
Maxxis Dissector / 2.4" / 120TPI Foldable / DD/ TR / 3C Maxx Terra
Extras
RS Zeb Fender
Accessories
Syncros IS Matchbox Kit / Syncros Multi-tool Matchbox 8
Approx weight in KG
16.7 (with tubes without Matchbox IS)
Approx weight in LBS
36.82 (with tubes without Matchbox IS)
Max. System Weight
128 kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
