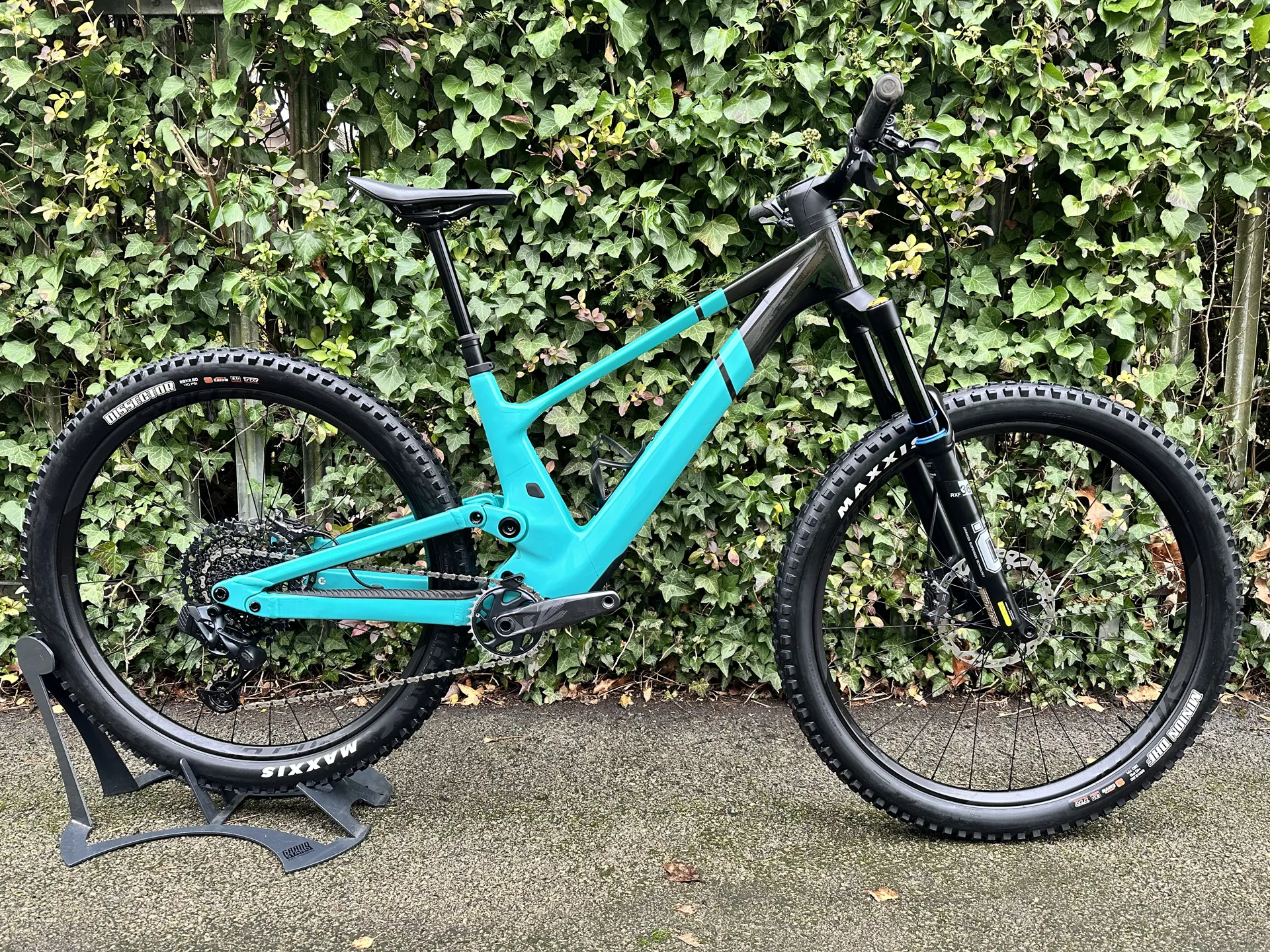

Frame - Genius Carbon HMF Mainframe with Alloy 6061 SwingarmIntegrated Suspension TechnologyVirtual 4 Link kinematic / Adjustable head angleSyncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline

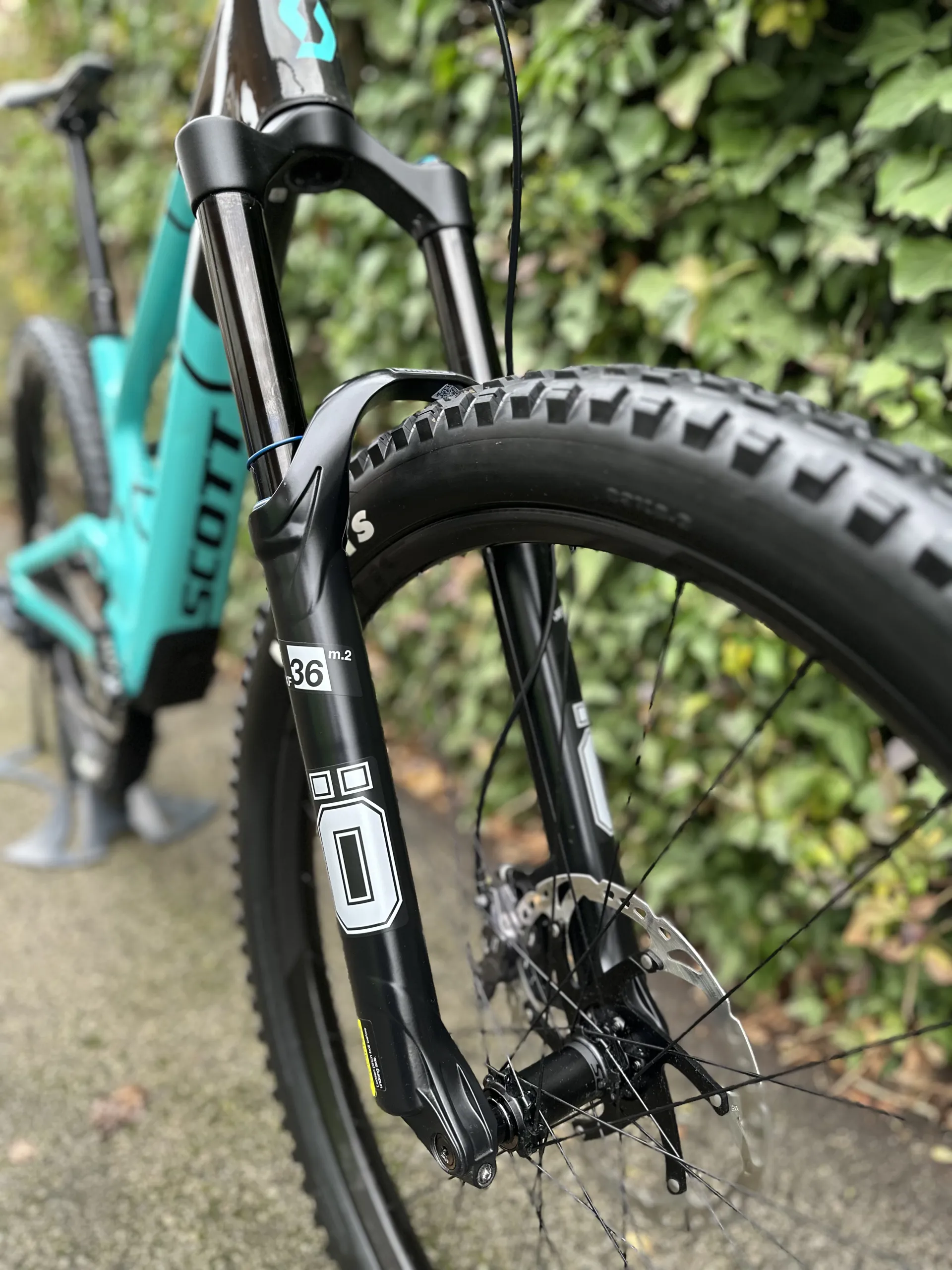

Fork - Ohlins RXF36m.2 AirTTX-Technology HSC - LSC - LSR adjustable / 15x110mm Axle44mm offset / tapered steerer160mm travel
Rear Shock - FOX FLOAT X NUDE PE EVOL Piggy Back TrunnionSCOTT custom w. travel / geo adj.3 modes: Climb-Traction Control-DescendCustom large Air volume / Comp & Reb. Adj.Travel 150-100-Climb / T185X55mm

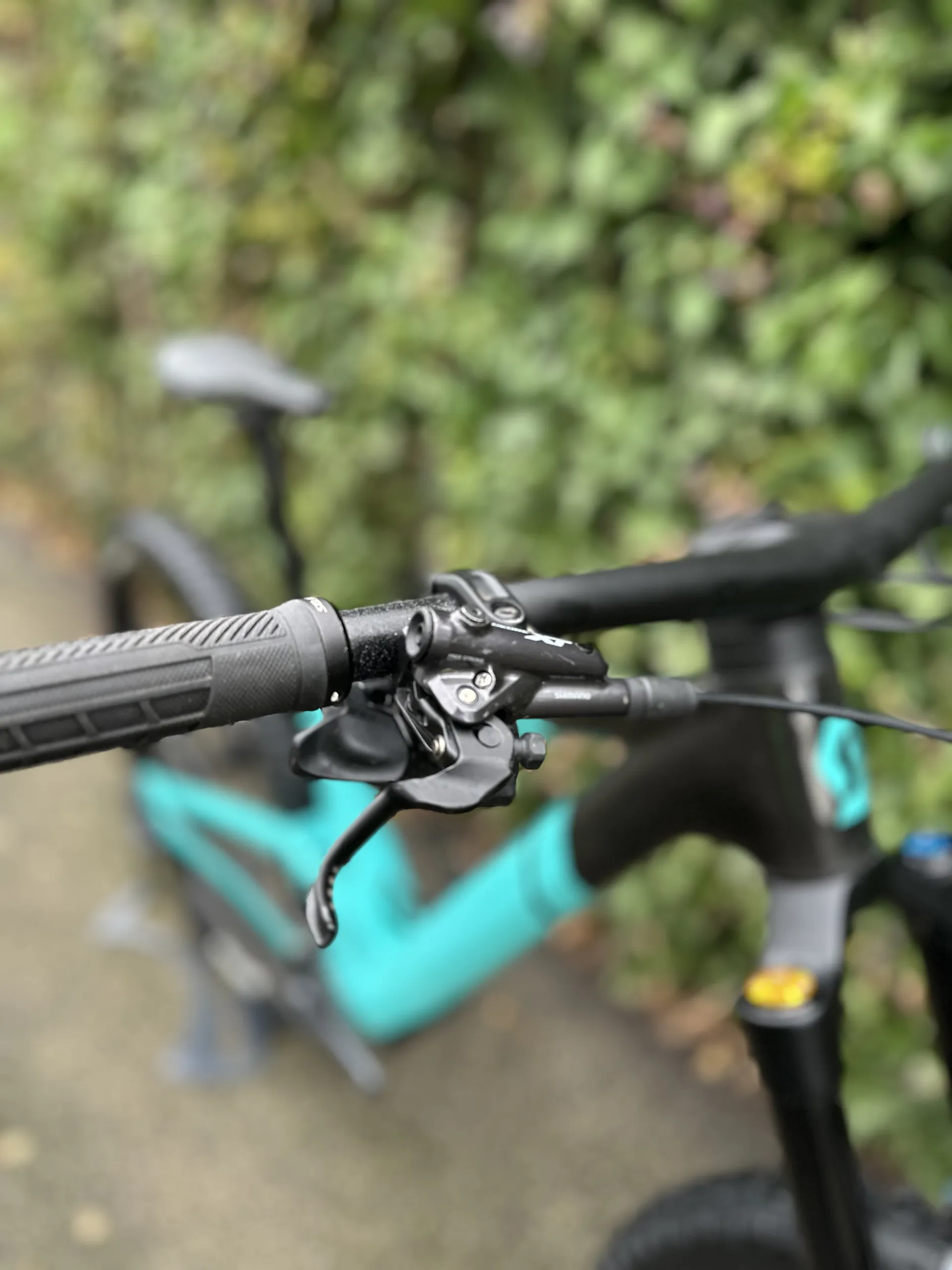

Remote System - TracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes
Rear Derailleur - SRAM GX Eagle AXS 12 SpeedWireless Electronic Shift System
Shifters - SRAM GX Eagle AXS Rocker Controller

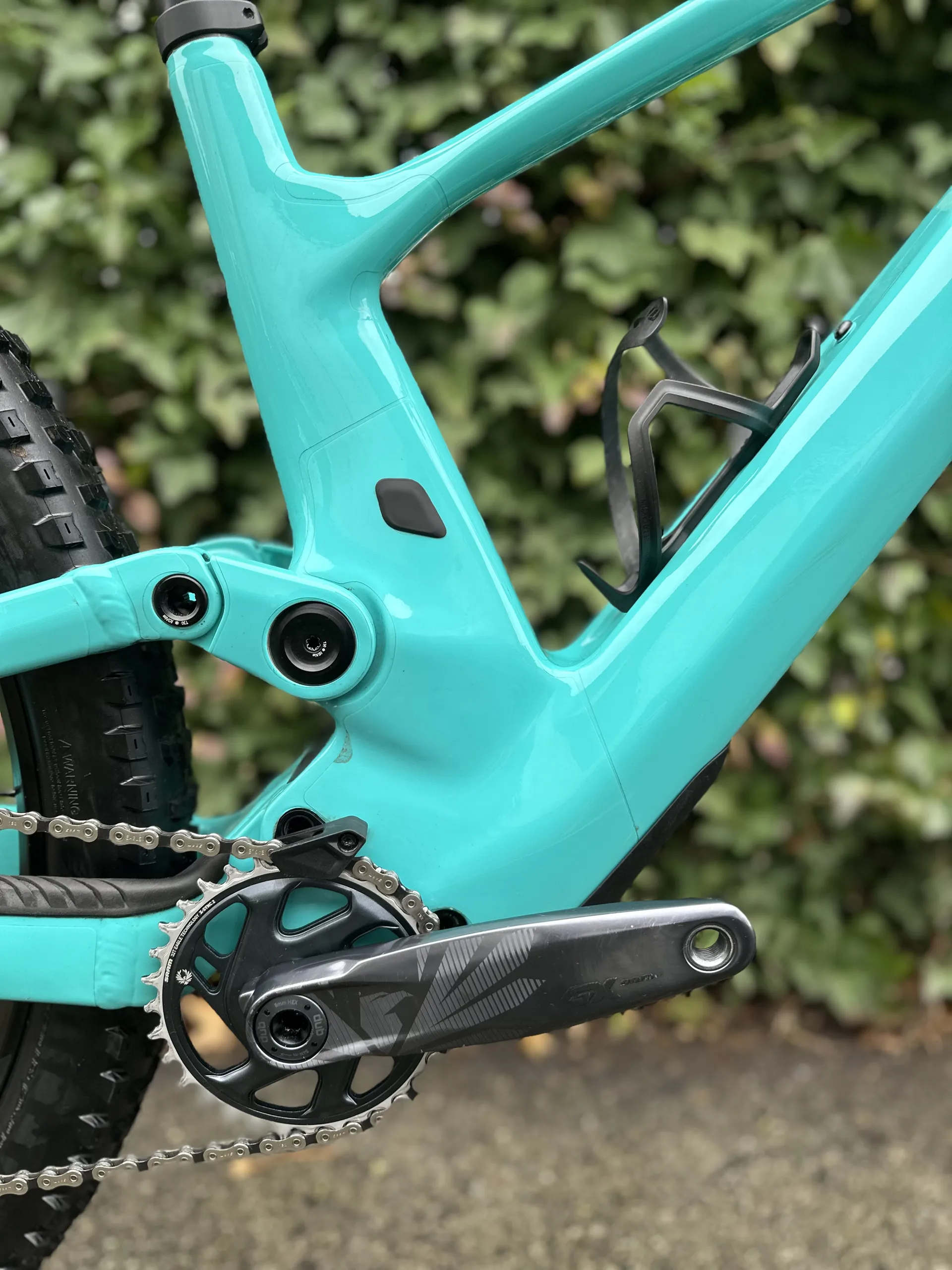

Crankset - SRAM GX Eagle DUB55mm CL / 32T
BB-Set - SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain - SRAM CN GX Eagle

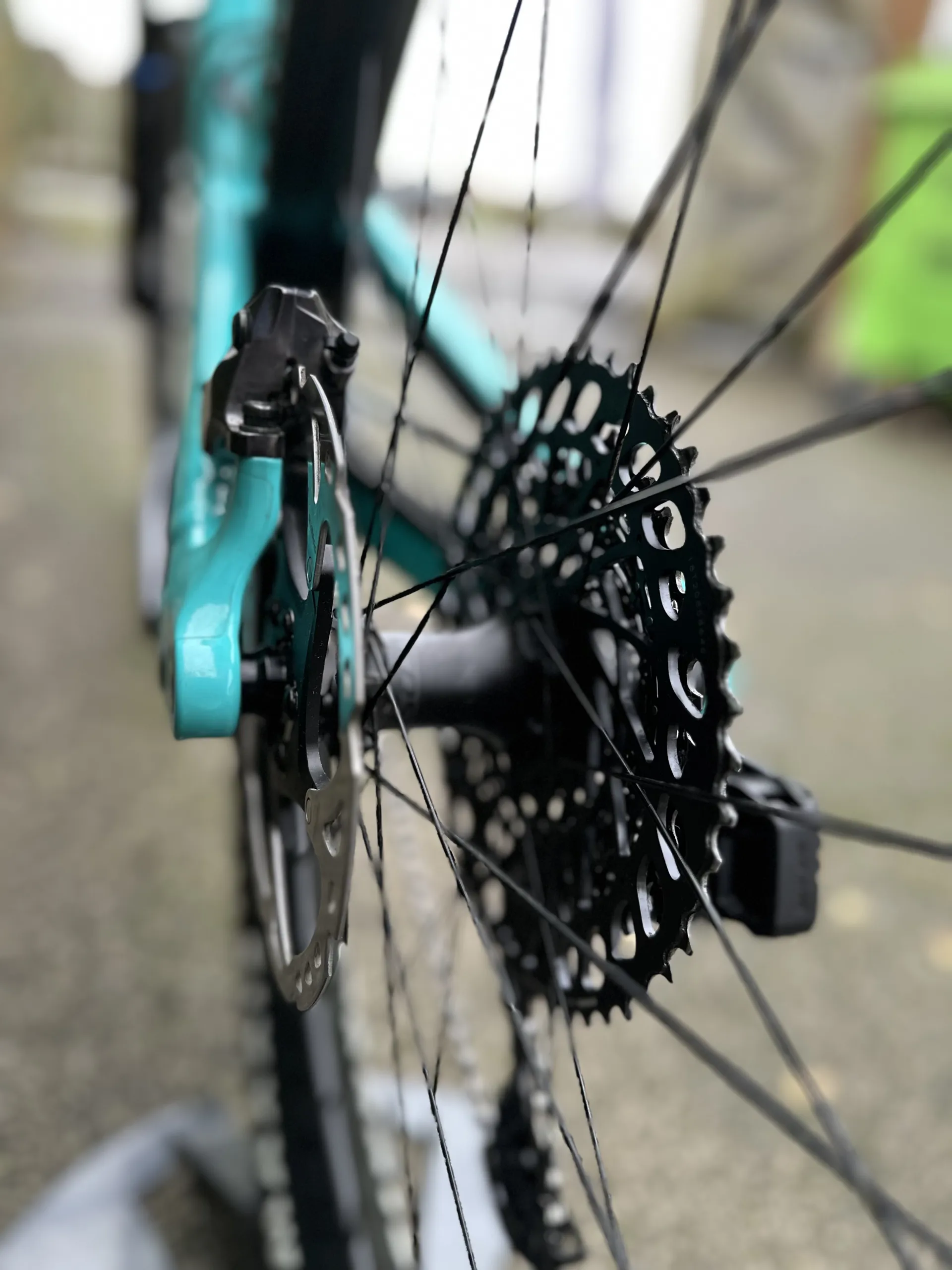

Cassette - SRAM XG1275 / 10-52 T

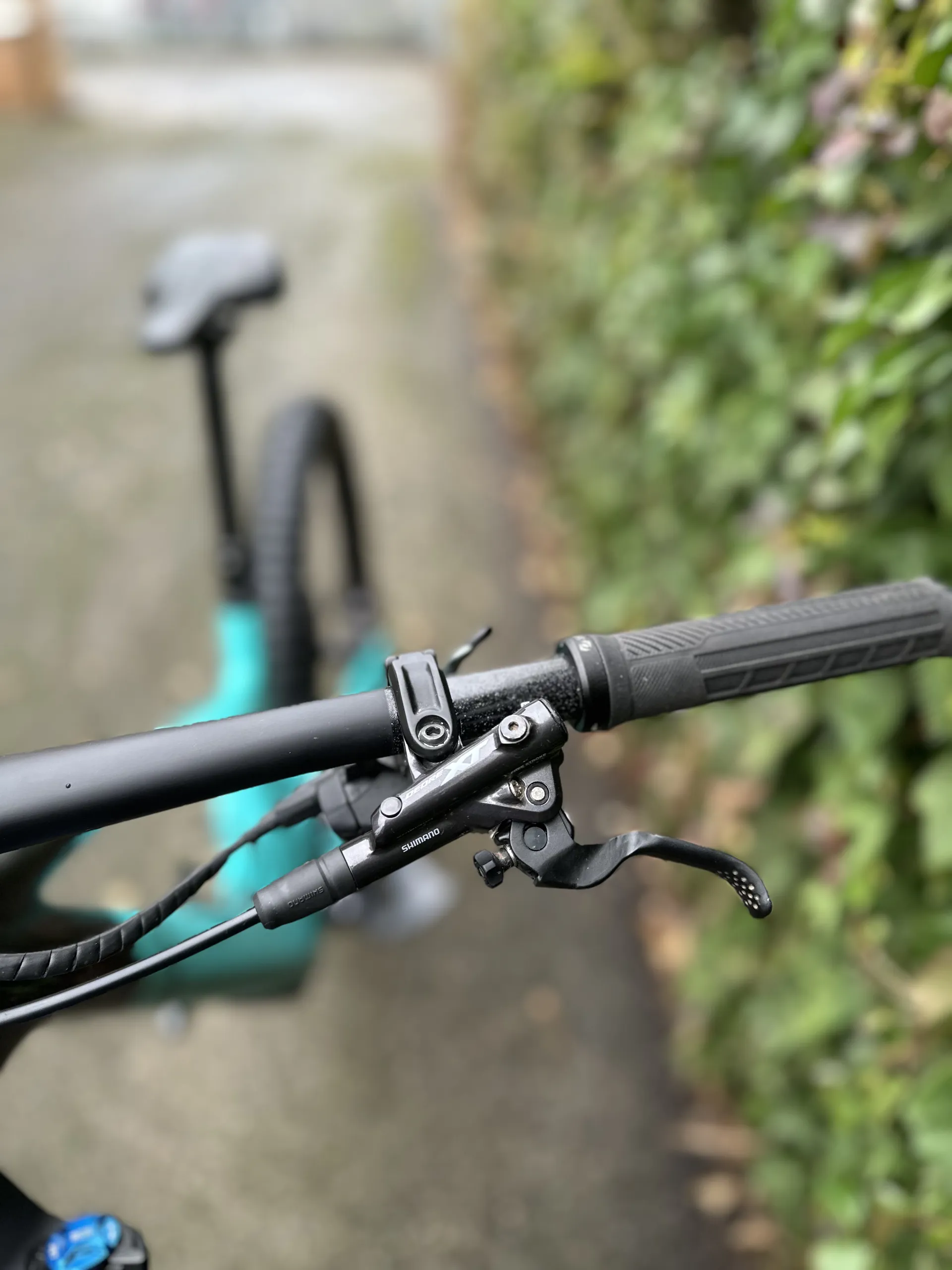

BrakesShimano XT M8120 4 Piston Disc
Rotor - Shimano SM-RT76 / 6 Bolt / 203/F and 180/R

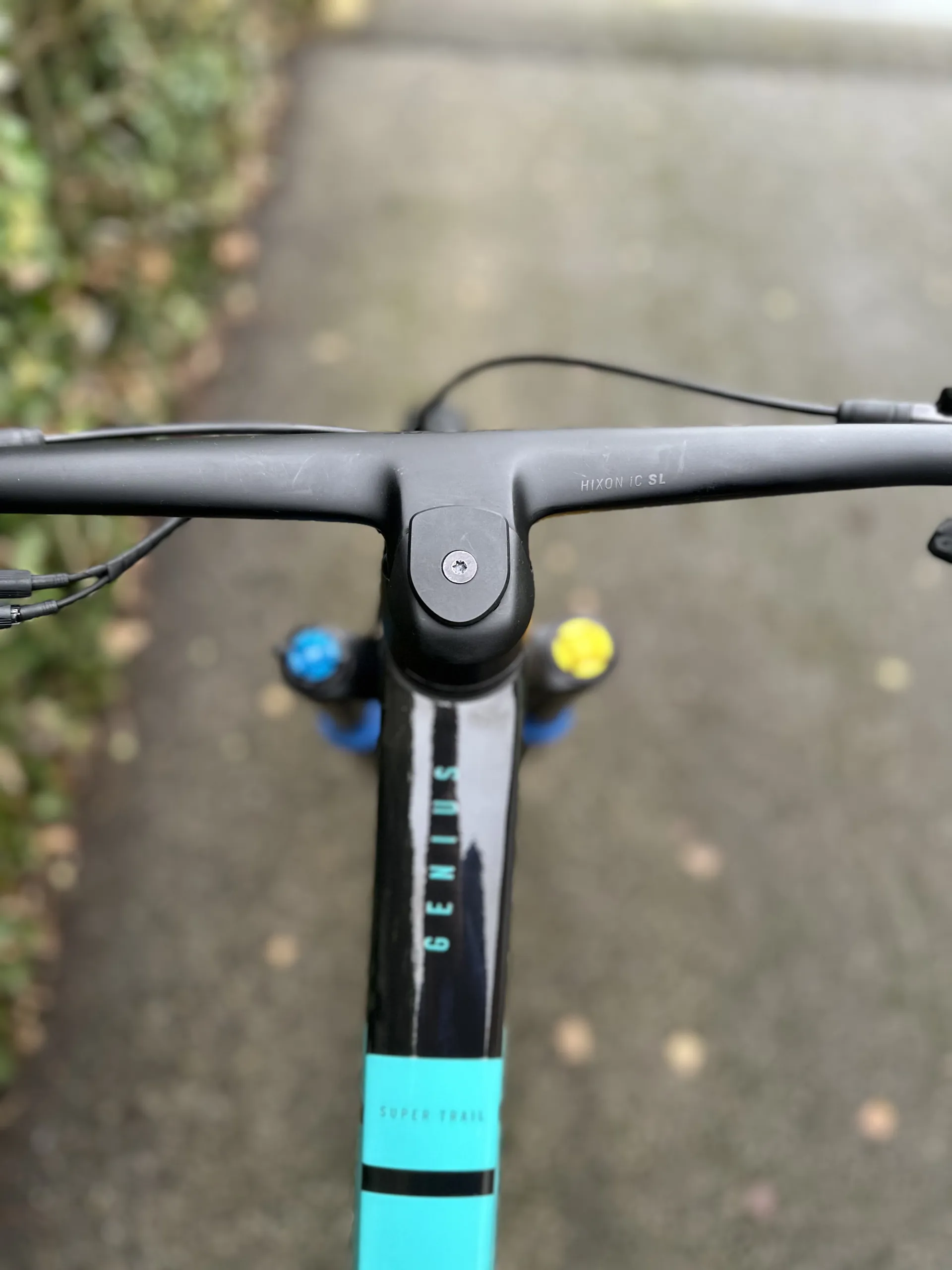

Handlebar - Syncros Hixon iC CarbonSize S & M 15mm rise / Size L & XL 25mm riseback sweep 8° / 780mmSyncros Endurance lock-on grips

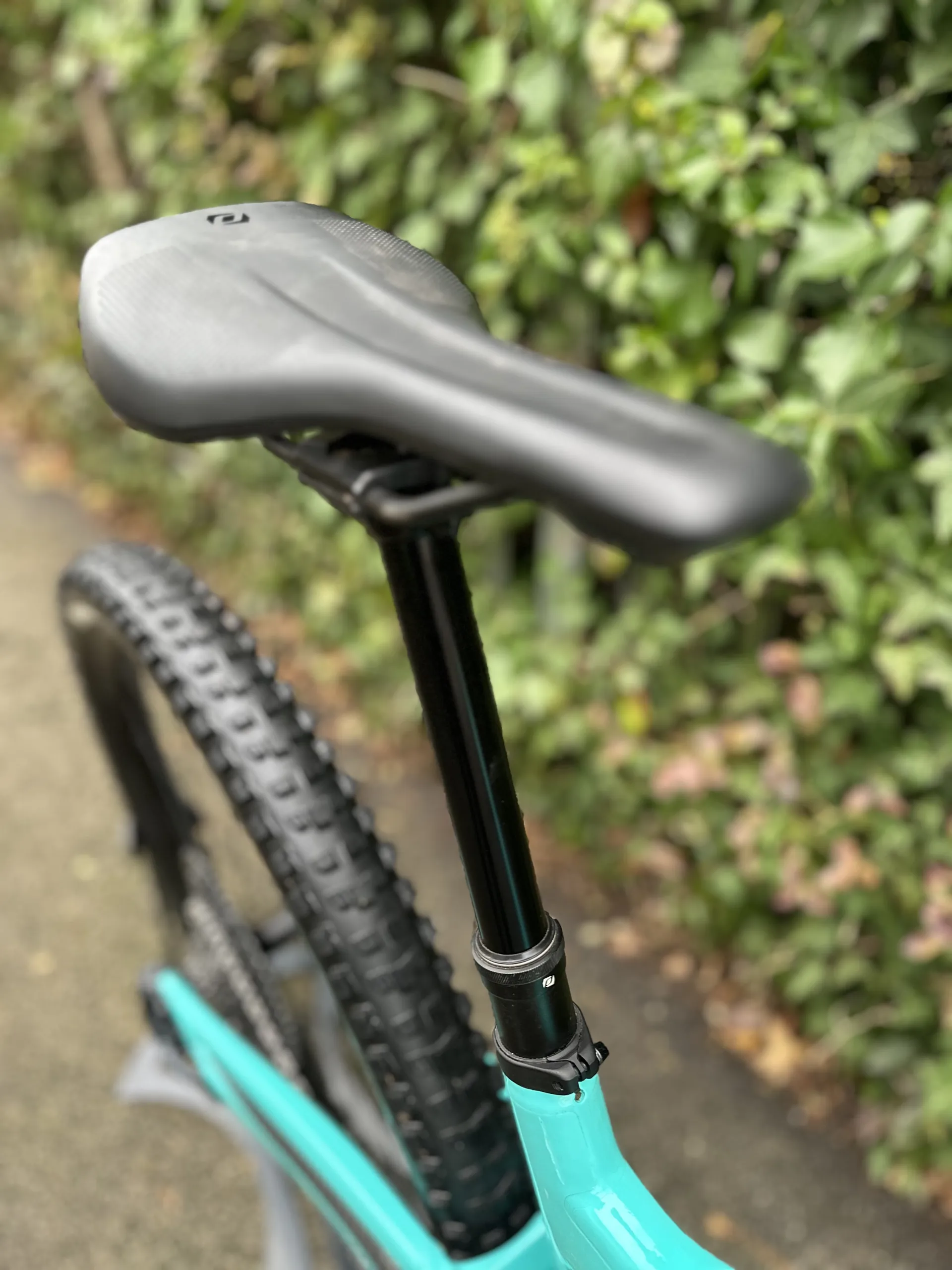

Seatpost - Syncros Duncan Dropper Post 1.531.6mm / S size 140mm / M size 160mmL size 170mm / XL size 200mm
Wheelset - Syncros Revelstoke 2.0 6 BoltF: 15x110mm, R: 12x148mm30mm Tubeless ready rim 28H / XD DriverSyncros Axle w/Removable Leverwith 6mm Allen, T30 and T25 Tools
Front Tire - Maxxis Minion DHF / 120TPI FoldableTubeless Ready / EXO 3C maxxTerra

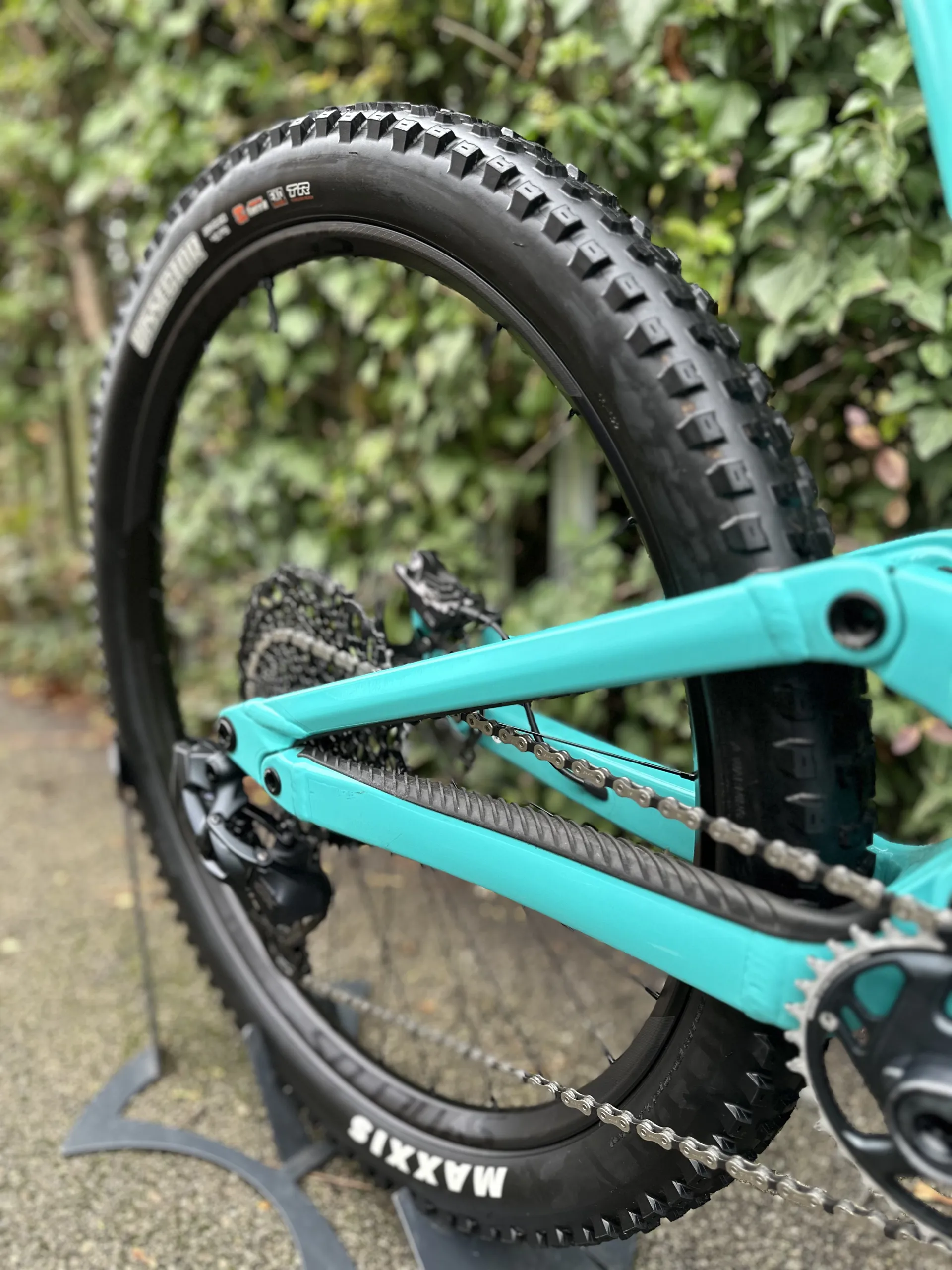

Rear Tire - Maxxis Dissector / 60TPI FoldableTubeless Ready / EXO 3C maxxTerra
Extras - SRAM AXS PowerpackSyncros Fork Fender
Approx weight in KG14.4 (Tubeless setup)
Approx weight in LBS31.75 (Tubeless setup)
Max. System Weight - 128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
