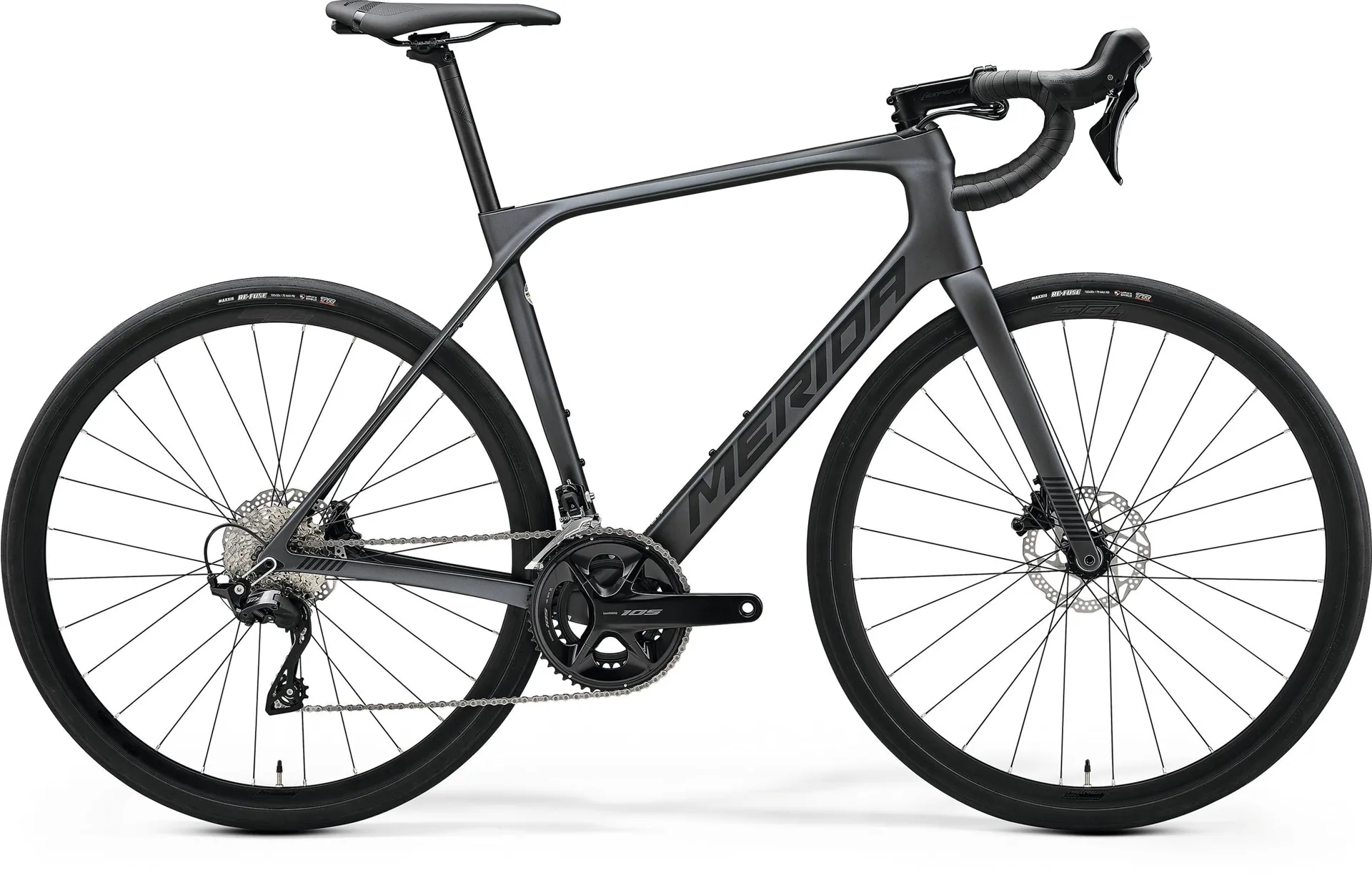

Merida Scultura Endurance 4000 2024 Road Bike | |
Frame | CF3 carbon, Nano Matrix for impact resistance |
Fork | Scultura Endurance CF3 Disc; full carbon, tapered steerer |
Headset | Merida-8151 Semi Integrated HS |
Shifter Levers | Shimano 105 disc |
Front Derailluer | Shimano 105 |
Rear Derailleur | Shimano 105, GS |
Cassette | Shimano CS-R7101; 11-34 teeth; 12 speed |
Chain | Shimano CN-M6100-12 |
Crankset | Shimano 105; FCR7100, 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (M,L), 175mm (XL) |
Bottom Bracket | Shimano BB71-41B, Pressfit 86.5 |
Front Hub | Joytech D981SB; 100x12mm; 28 spokes; Centerlock with Merida Comp SL axle |
Rear Hub | Joytech D872SB; 12x142mm; 28 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
Rims | Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
Spokes | Double Butted Black stainless |
Front Tyre | Maxxis Re-Fuse; 700 x 32C; Kevlar bead, folding |
Rear Tyre | Maxxis Re-Fuse; 700 x 32C; Kevlar bead, folding |
Front Brake | Shimano 105 hydraulic disc brake caliper with Shimano RT54 160mm rotor |
Rear Brake | Shimano 105 hydraulic disc brake caliper with Shimano RT54 160mm rotor |
Brake Levers | Shimano 105 |
Stem | Merida Expert CW; aluminium; 31.8mm diameter; -7 degree rise. Length 80mm (XXS), 90mm (XS), 100mm (S,M), 110mm (L), 120mm (XL) |
Handlebar | Merida Expert SLII; aluminium; Width: 380mm(XXS), 400mm (XS,S), 420mm (M,L), 440mm (XL) |
Grips | Merida Road Expert |
Seatpost | Merida Expert CC; 27.2mm diameter; 15mm lay back; Carbon |
Saddle | Merida Comp SL with V-mount; including Merida minitool |
Pedals | Included |
Disclaimer | Specifications are subject to change without notice |
